8CH DWDM Moudule 2In1 Rack
The Double Fiber DWDM mux Passive filters 1x8 Channels networks offers an high channel isolation WDM solution for data centers and Metro access applications.
  • Double Fiber DWDM mux Passive filters 1x8 Channels networks



    GEZHI’ Double Fiber DWDM mux Passive filters 1x8 Channels networks is a low loss, high density passive optical module which based on the thin film coating technology with C27, C28, C29, C30, C31, C32, C33, C34 at ITU grid wavelength C1 to C61 for customs choice. Its package with 2slot 19" 1U Rack Mount LC/UPC adaptor.  The Double Fiber DWDM mux Passive filters 1x8 Channels networks is ideal for long-haul transport of fiber optic singals all over a dual fiber. GEZHI's Dense Wavelength Division Multiplexing (DWDM) is an important milestone in the evolution of fiber optic transmission technology


    Features

    High channel

    Wide pass band

    Low Insertion Loss

    High stability and reliability

    Epoxy-Free Optical Path



    Applications

    Access / Enterprise Networks

    Metro Networks

    Long Haul Networks

    Wavlength Routing

    Channel Add/Drop

    CATV Fiber Optic Links

    Dense WDM Systems


    Specification

    ParameterUnitPassive Filters DWDM
    Channel Number--1x8 Channels
    Operation WavelengthnmC27~C34
    Channel Central WavelengthnmITU-T Grid @DWDM
    Channel Passbandnm0.8 (100Ghz)
    Insertion Loss @PBdB<2.8
    Isolation @Adjacent ChanneldB>30
    Isolation @Non-adjacent ChanneldB>40
    Isolation @Reflect ChanneldB>15
    Passband RippledB<0.5
    Polarization Dependent LossdB<0.15
    Polarization Mode Dispersionps<0.1
    Directivity & Return LossdBDirectivity: >50 Return Loss:>45
    Power HandlingmW<500
    Connector--LC/UPC
    Fiber Type--SMF-28e or Customized
    Operating Temperature-20 ~ +70
    Storage Temperature-40 ~ +85
    Package Dimensionmm2Slots 19" 1U Rackkmount



    GEZHI's Double Fiber DWDM mux Passive filters 1x8 Channels networks offers high-capacity terminal DWDM solutions for network expansion. This Double Fiber DWDM mux Passive filters 1x8 Channels networks is used for long-haul transmission where wavelengths are packed tightly together over the C-band in 100GHz grid (0.8nm). The Double Fiber DWDM mux Passive filters 1x8 Channels networks is protocol transparent and suited for applications including SDH/SONET, 10/1G Ethernet, 16/8/4/2/1G Fibre Channel, CATV, FTTx, etc.



    Double Fiber DWDM mux Passive filters 1x8 Channels networks

    Double Fiber DWDM mux Passive filters 1x8 Channels networks 0

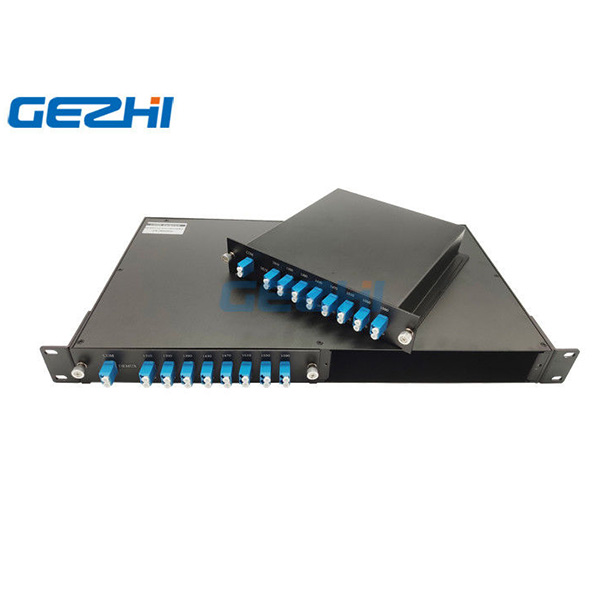

    19“ 1U Rackmount

    Double Fiber DWDM mux Passive filters 1x8 Channels networks 1



    8 Channels Fiber Optic Multiplexer Optical Passive DWDM Mux Modules

    Dual Fiber DWDM



    Double Fiber DWDM mux Passive filters 1x8 Channels networks 2
