10G OEO converter 3R Repeater
OEO(Optical-Electrical-Optical) converter is a device used in optical transmission which converts signals by amplifying and shaping, even the conversion of wavelength and the pattern. With the OEO converter, we can effectively save the fibre resource and network costs. In addition, issues of optical fiber long distance transmission can be solved by using this device.

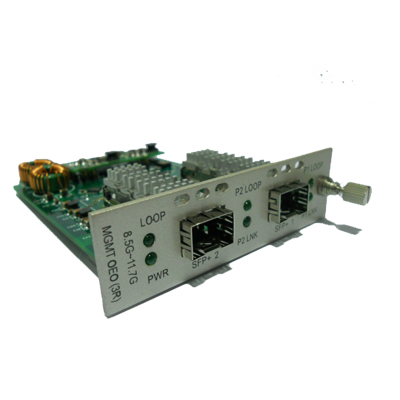

  • 8.5G~11.7G OEO Converter (3R Repeater)

     10G OEO Converter WDM Transponder


         8.5G~11.7G OEO Converter (3R Repeater) is connection between fiber to fiber 10Gbps equipment function as fiber media converter ,or as fiber repeater for long distance transmission.

    OEO for network backbone(SAN, LAN, MAN). Support SDH/SONET STM-64/OC-192，10G fiber channel，10G Ethernet etc.


    GEZHI Optical-Electrical-Optical (OEO) signal converter that provides several functions, including optical wavelength conversion, optical signal boosting, and optical multiplexing. Although many configurations are possible, the standard card combines optical signals from eight separate fibers into a single fiber, often with increased optical power budget to significantly extend the range of the original signals or pass the signals through higher loss cabling systems. The signals are converted back to their original wavelengths at the other end of the fiber link, thus providing a transparent, bidirectional system.



    Key Features

    • Support Loopback

    • Support Jumbo Frame

    • Transparent Transport and very low delay

    • Support ITUT prescribed DWDM/CWDM wavelength

    • Support hot plugging

    • Support 2U Rack (16 channel) and standalone use

    • Full State Led display

    • Easy installation



    Specifications

    Performance DataTechnical Indexes
    Transmission Speed8.5Gb/s-11.35Gb/s
    Protocols8.5G Fiber Channel
    SONET OC-192, SDH STM-64 (9.95Gbps)
    10G WAN (10Gbps)
    10G LAN (10.31Gbps)
    OTN OTU-2 (G.709) (10.70Gbps)
    10G LAN with 255/237 FEC coding (11.09Gbps)
    10G Fiber Channel (11.32Gbps)
    10G POS
    Interface Type

    Type A : XFP to XFP

    Type B : XFP to SFP+

    Type C : SFP+ to XFP

    Transmission DistanceXFP module: Up to 80Km
    Maximum Packet14,880,950/S
    Forwarding Rate
    power requirementRack-mountable : AC 85 ～ 220V OR DC -48V
    Standalone: AC 110~220V OR -48V
    Power consumption: ≤4W
    Work EnvironmentOperating Temp: 0~ 50 ℃
    Storage Temp: -10~ 70 ℃
    Humidity: 5%~90% ( non-condensing )
    DimensionCard : 115mm ( W ) × 78mm ( D )
    Standalone : 156mm ( W ) × 128mm ( D ) × 32mm( H )



    10G OEO Converter Standalone

    XFP to XFP Fiber Optics Components , 10G OEO Converter 3R Repearter WDM Transponder
    GEZHI Photonics standalone WDM tronsponer are consist of a 2ports OEO card and a single Chassis. The 2port OEO card could be 10G SFP+ to SFP+, 10G XFP to SFP+ or 10G XFP to XFP.

    2U Unified Platefrom Chassis


    XFP to XFP Fiber Optics Components , 10G OEO Converter 3R Repearter WDM Transponder



    GEZHI Photonics can also provide 2U Unified Platefrom Chassis for 10G OEO Card. Each card (10G SFP+ to SFP+, 10G XFP to SFP+,10G XFP to XFP ) can coexist together in this 2U 17-slot Managed chassis.
